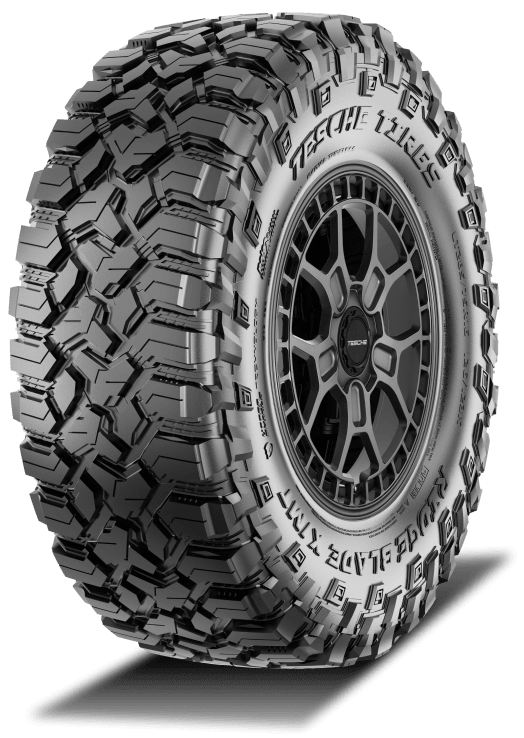

RIDGE BLADE X/MT

EXTREME MUD TERRAIN TIRE

View Sizes and Specs

SUPERB OFF-ROAD PERFORMANCE

FEATURES & BENEFITS

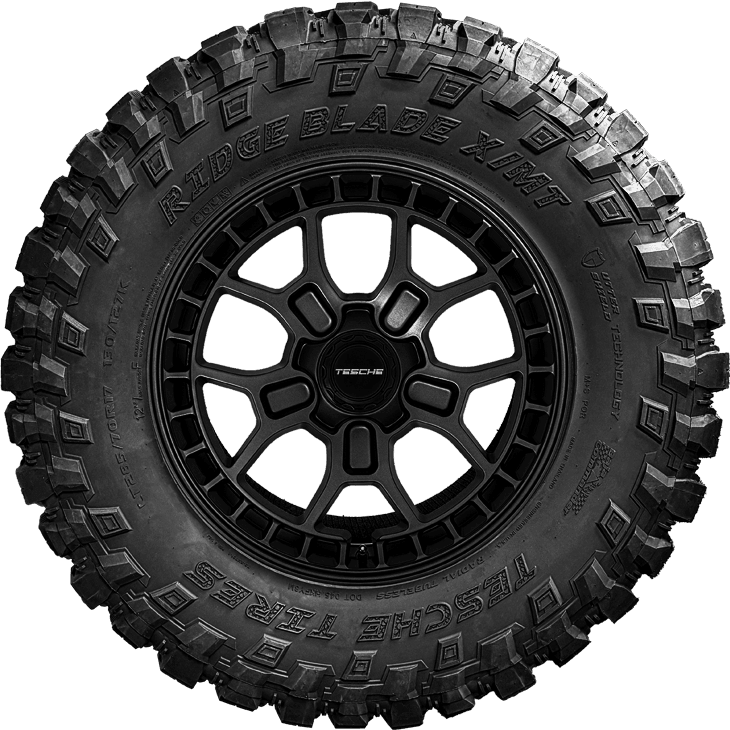

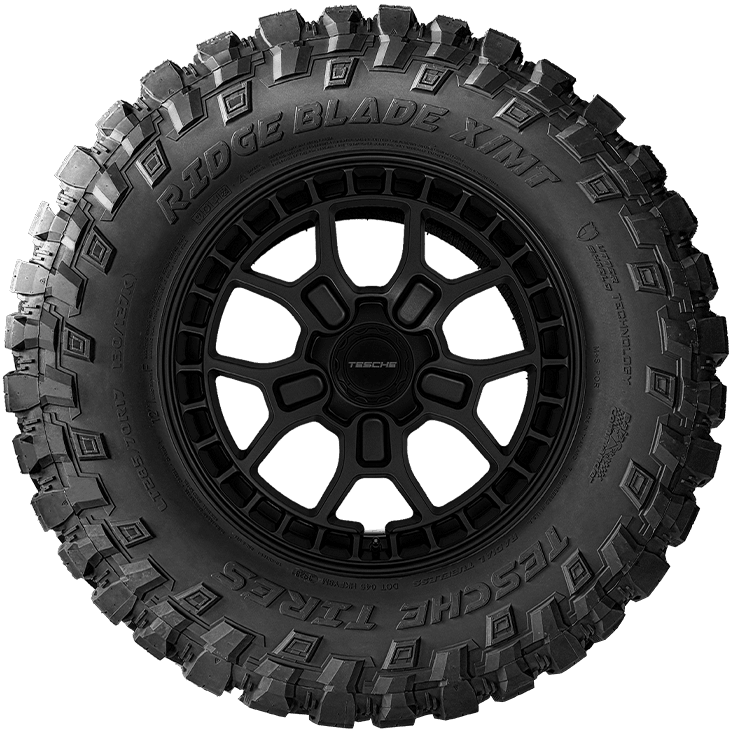

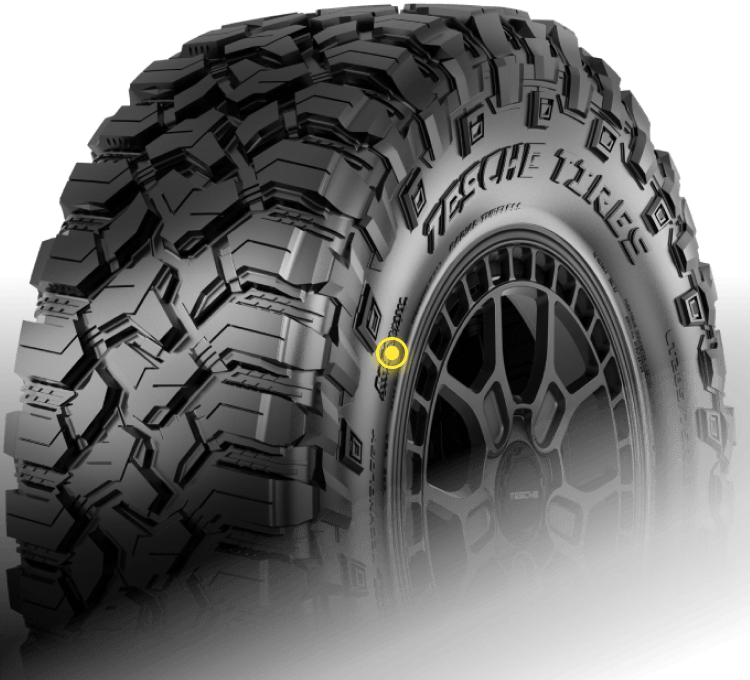

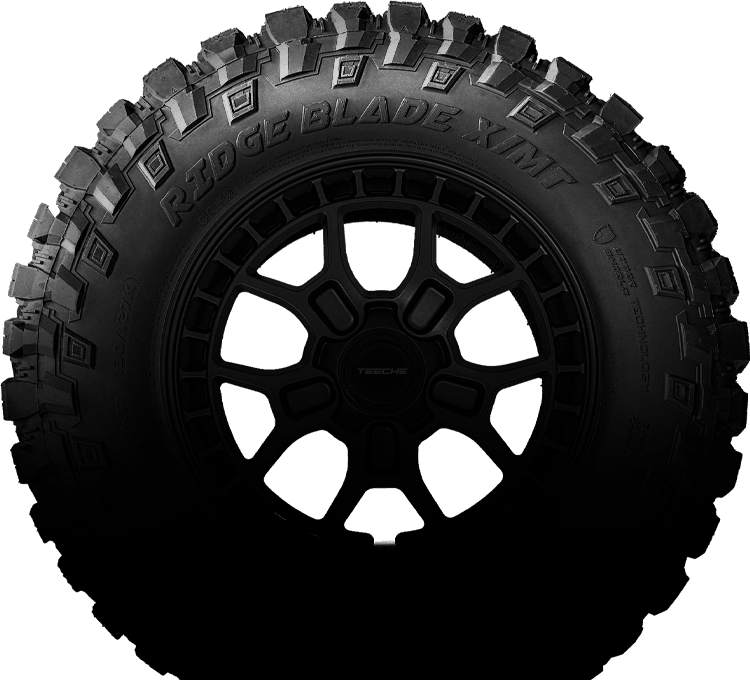

DUAL SIDEWALL DESIGNS

FEATURES & BENEFITS

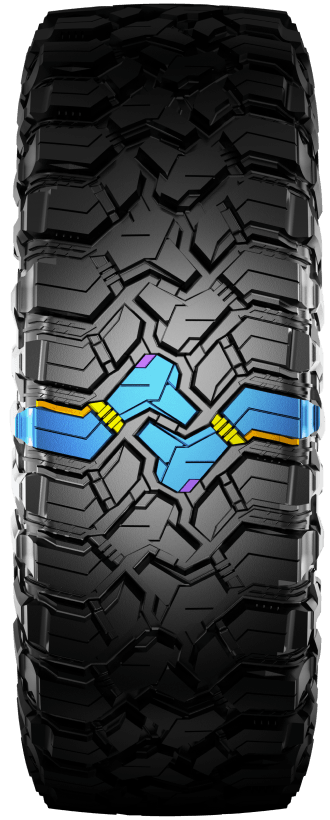

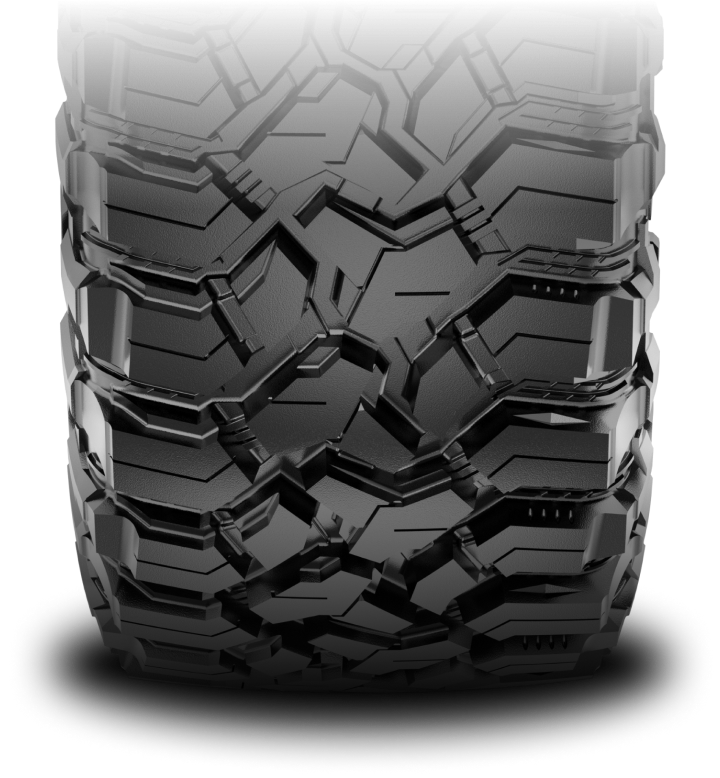

OPTIMISED "VIKING TOMAHAWK" 3D TREAD PATTERN

FEATURES & BENEFITS

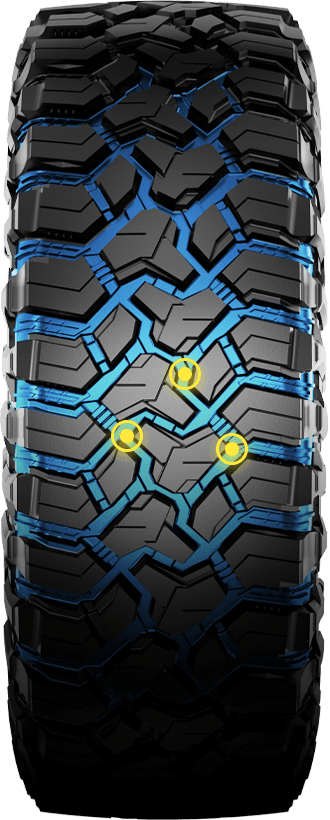

AI SIMULATION OPTIMISED VOID-TO-FILL RATIO

FEATURES & BENEFITS

EXCLUSIVE COMPOUND AND SIDEWALL REINFORCEMENT TECHNOLOGY

FEATURES & BENEFITS

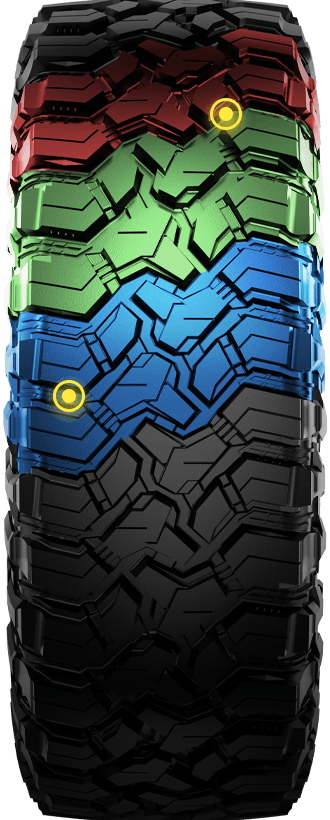

VARIABLE PITCH DESIGN FOR EFFECTIVE NOISE REDUCTION

FEATURES & BENEFITS

DOUBLE STONE & MUD-STRIPPING BARS

PERFORMANCE RATINGS

MUD

5
ROCK

5
SAND

4.5
SNOW

3.5
WET TRACTION

3.5

Online Message

Name*

Tel：

Email*

content*

RELATED TIRES

RIDGE BLADE X/MT

VIEW DETAIL

RIDGE BLADE X/RT

VIEW DETAIL

RIDGE BLADE X/T

VIEW DETAIL

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC038TT	LT235/75R15	110/107	Q	D - 8P.R.	RBL-3ply	6.5	28.88	9.25	21	2337	2149	65
TC061TT	31x10.50R15LT	109	Q	D - 8P.R.	RBL-3ply	8.5	30.99	10.54	21	2271		50
TC062TT	33x10.50R15LT	114	Q	F - 12P.R.	RBL-3ply	8.5	32.99	10.54	21	2601		80
TC063TT	33x12.50R15LT	117	Q	D - 8P.R.	RBL-3ply	10.0	32.68	11.97	21	2835		50
TC012TT	35x12.50R15LT	121	Q	D - 8P.R.	RBL-3ply	10.0	34.65	11.97	21	3195		50
TC020TT	37x12.50R15LT	121	Q	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	21	3197		80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC039TT	LT245/75R16	120/116	Q	E - 10P.R.	RBL-3ply	7.0	30.47	9.65	21	3086	2756	80
TC040TT	LT265/70R16	121/118	Q	E - 10P.R.	RBL-3ply	8.5	30.61	16	21	3197	2910	80
TC041TT	LT265/75R16	126/123	K	F - 12P.R.	RBL-3ply	7.5	31.73	10.31	21	3750	3415	95
TC001TT	LT285/75R16	130/127	K	F - 12P.R.	RBL-3ply	8.0	32.99	11.34	21	4190	3860	95
TC042TT	LT315/75R16	127/124	K	E - 10P.R.	RBL-3ply	9.5	34.6	12	21	3858	3527	80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC043TT	LT265/65R17	120/117	Q	E - 10P.R.	RBL-3ply	9.5	30.56	10.43	21	3086	2833	80
TC044TT	LT265/70R17	126/123	K	F - 12P.R.	RBL-3ply	8.0	31.73	10.55	21	3750	3415	95
TC002TT	LT285/70R17	130/127	K	F - 12P.R.	RBL-3ply	8.5	32.99	11.5	21	4190	3860	95
TC045TT	LT295/70R17	121/118	Q	E - 10P.R.	RBL-3ply	8.5	33.3	11.6	21	3197	2910	80
TC046TT	LT305/65R17	121/118	Q	E - 10P.R.	RBL-3ply	9.0	32.6	12	21	3197	2910	80
TC003TT	LT315/70R17	121/118	Q	E - 10P.R.	RBL-3ply	9.5	34.36	12.4	21	3197	2910	80
TC066TT	35x11.50R17LT	126	K	F - 12P.R.	RBL-3ply	9.0	34.99	11.54	21	3748		80
TC064TT	33x12.50R17LT	124	K	F - 12P.R.	RBL-3ply	10.0	32.68	11.97	21	3525		80
TC013TT	35x12.50R17LT	128	K	F - 12P.R.	RBL-3ply	10.0	34.65	11.97	21	3970		80
TC021TT	37x12.50R17LT	124	K	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	21	3527		80
TC072TT	37x13.50R17LT	121	Q	F - 12P.R.	RBL-3ply	11.0	36.99	13.54	21	3197		80
TC075TT	38x13.50R17LT	126	K	F - 12P.R.	RBL-3ply	11.0	37.99	13.54	21	3748		80
TC078TT	40x13.50R17LT	126	K	F - 12P.R.	RBL-3ply	11.0	39.99	13.54	21	3748		80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC047TT	LT265/60R18	119/116	Q	E - 10P.R.	RBL-3ply	8.0	30.52	10.43	21	2998	2756	80
TC163TT	LT265/65R18	125/122	K	F - 12P.R.	RBL-3ply	8.0	31.73	10.55	21	3640	3305	95
TC048TT	LT275/65R18	127/124	K	F - 12P.R.	RBL-3ply	8.0	32.05	10.87	21	3860	3525	95
TC049TT	LT275/70R18	128/125	K	F - 12P.R.	RBL-3ply	8.0	33.15	10.79	21	3970	3640	95
TC004TT	LT285/65R18	128/125	K	F - 12P.R.	RBL-3ply	8.5	32.52	11.34	21	3970	3640	95
TC050TT	LT305/60R18	121/118	Q	E - 10P.R.	RBL-3ply	9.0	32.4	12	21	3197	2910	80
TC051TT	LT325/65R18	127/124	K	E - 10P.R.	RBL-3ply	11.0	34.6	12.8	21	3858	3527	80
TC065TT	33x12.50R18LT	122	K	F - 12P.R.	RBL-3ply	10.0	32.68	12.13	21	3305		80
TC014TT	35x12.50R18LT	128	K	F - 12P.R.	RBL-3ply	10.0	34.65	12.05	21	3970		80
TC022TT	37x12.50R18LT	126	K	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	21	3748		80
TC073TT	37x13.50R18LT	126	K	F - 12P.R.	RBL-3ply	11.0	36.99	13.54	21	3748		80
TC031TT	38x15.50R18LT	126	K	F - 12P.R.	RBL-3ply	12.0	37.99	15.54	21	3748		80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC052TT	LT275/55R20	125/122	K	F - 12P.R.	RBL-3ply	8.5	32.05	11.26	21	3640	3305	95
TC053TT	LT275/60R20	127/124	K	F - 12P.R.	RBL-3ply	8.0	33.15	10.87	21	3860	3525	95
TC054TT	LT275/65R20	126/123	K	E - 10P.R.	RBL-3ply	8.0	34.07	10.83	21	3748	3417	80
TC005TT	LT285/55R20	126/123	K	F - 12P.R.	RBL-3ply	9.0	32.52	11.57	21	3750	3415	95
TC055TT	LT285/60R20	125/122	K	E - 10P.R.	RBL-3ply	8.5	33.46	11.22	21	3638	3307	80
TC056TT	LT295/55R20	123/120	K	E - 10P.R.	RBL-3ply	9.5	32.78	11.61	21	3417	3086	80
TC057TT	LT305/55R20	121/118	Q	E - 10P.R.	RBL-3ply	9.5	33.21	12.01	21	3197	2910	80
TC058TT	LT325/60R20	126/123	K	E - 10P.R.	RBL-3ply	11.0	37.4	12.8	21	3748	3417	80
TC006TT	33x11.50R20LT	126	K	F - 12P.R.	RBL-3ply	9.0	32.99	11.54	21	3748		80
TC067TT	35x11.50R20LT	126	K	F - 12P.R.	RBL-3ply	9.0	34.99	11.54	21	3748		80
TC071TT	37x11.50R20LT	126	K	F - 12P.R.	RBL-3ply	9.0	36.99	11.54	21	3748		80
TC007TT	33x12.50R20LT	119	Q	F - 12P.R.	RBL-3ply	10.0	32.68	12.28	21	3000		80
TC015TT	35x12.50R20LT	125	K	F - 12P.R.	RBL-3ply	10.0	34.65	12.28	21	3640		80
TC023TT	37x12.50R20LT	126	K	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	21	3748		80
TC009TT	33x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	32.99	13.54	21	3748		80
TC018TT	35x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	34.99	13.54	21	3748		80
TC026TT	37x13.50R20LT	127/124	K	F - 12P.R.	RBL-3ply	11.0	36.99	13.54	21	3858	3527	80
TC029TT	38x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	37.99	13.54	21	3748		80
TC081TT	42x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	41.99	13.54	21	3748		80
TC032TT	38x15.50R20LT	126	K	F - 12P.R.	RBL-3ply	12.0	37.99	15.54	21	3748		80
TC034TT	40x15.50R20LT	126	K	F - 12P.R.	RBL-3ply	12.0	39.99	15.54	21	3748		80
TC083TT	46x19.50R20LT	126	K	F - 12P.R.	RBL-3ply	16.0	45.99	19.54	21	3748		80
