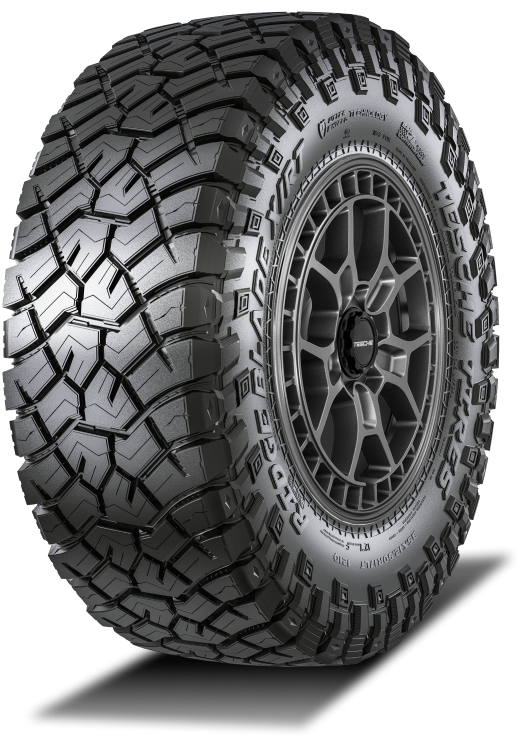

RIDGE BLADE X/RT

EXTREME RUGGED TERRAIN TIRE

View Sizes and Specs

LEGENDARY DURABILITY & EXTREME TRACTION

FEATURES & BENEFITS

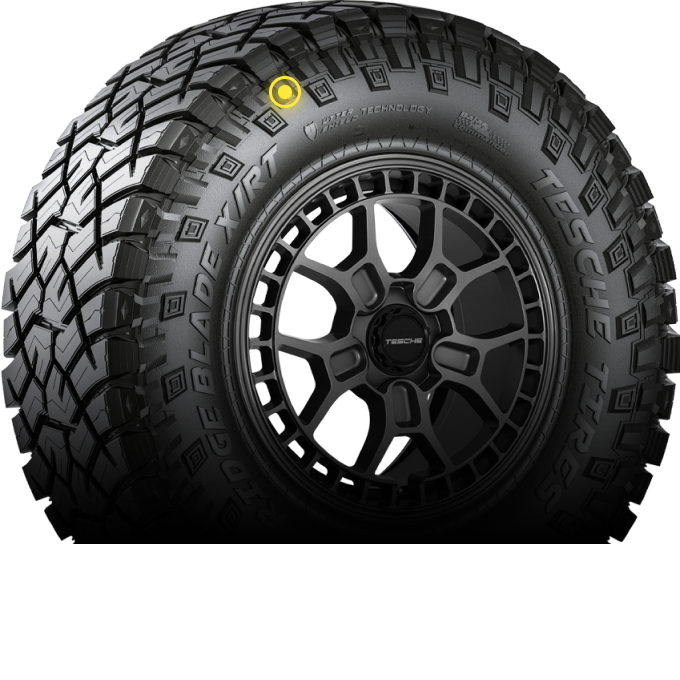

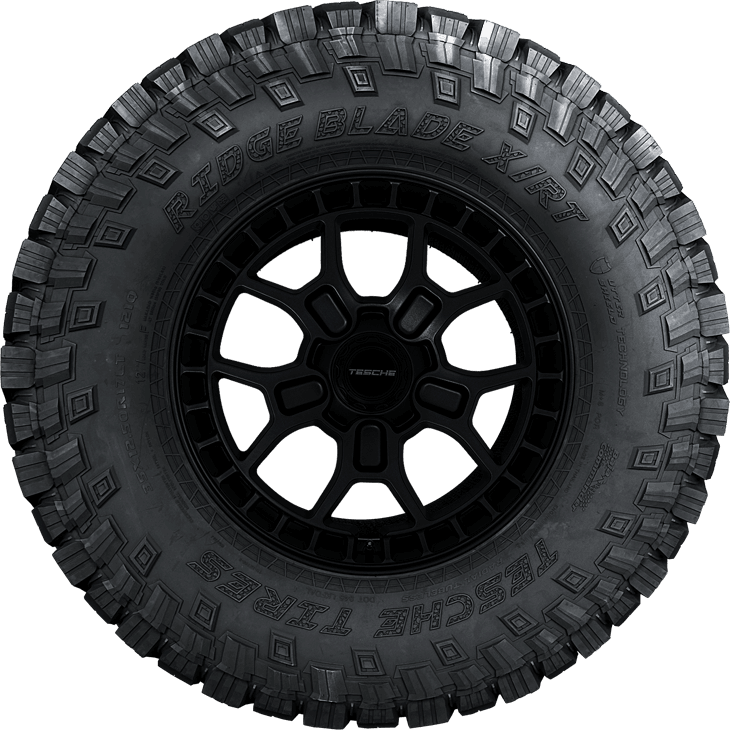

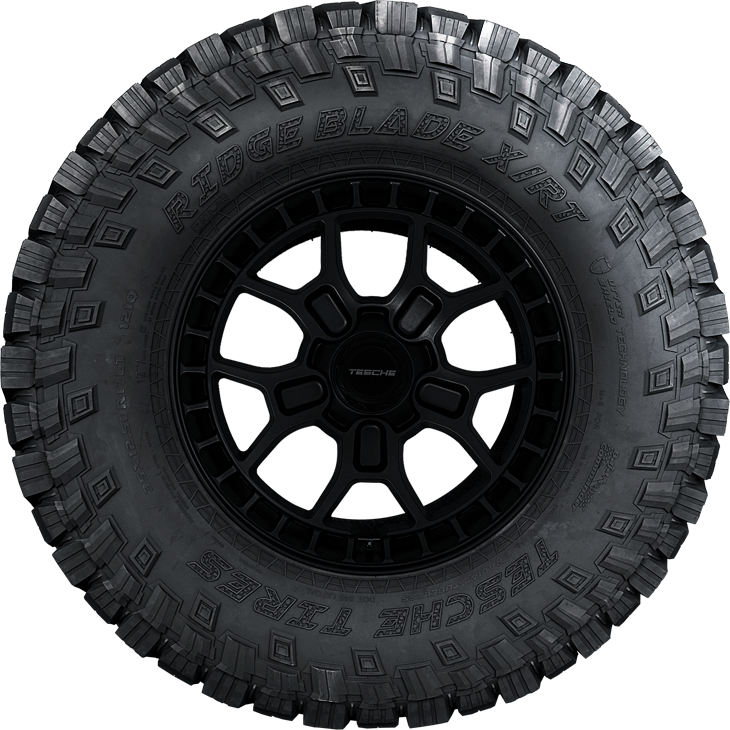

DUAL SIDEWALL DESIGNS

FEATURES & BENEFITS

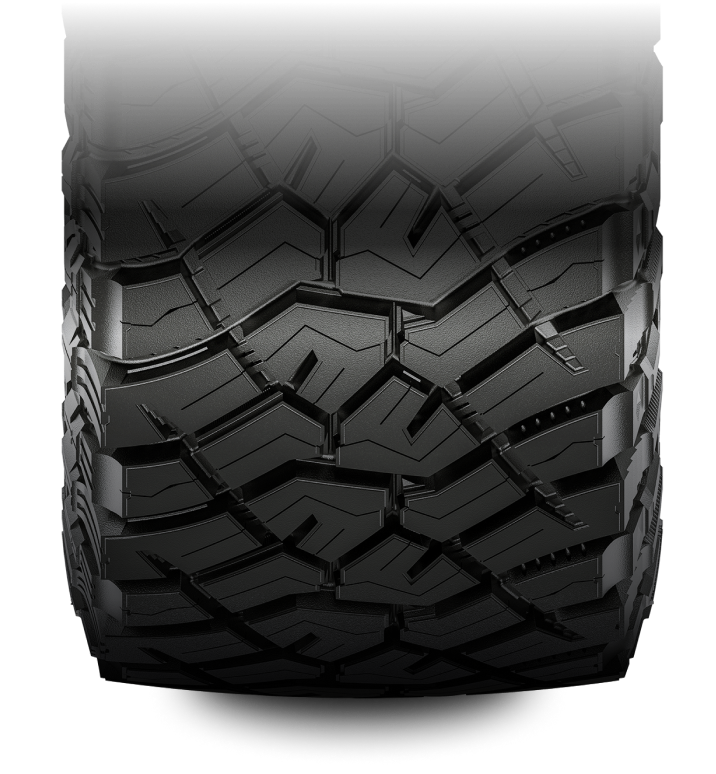

OPTIMISED "VIKING BATTLE AXE" 3D TREAD PATTERN

FEATURES & BENEFITS

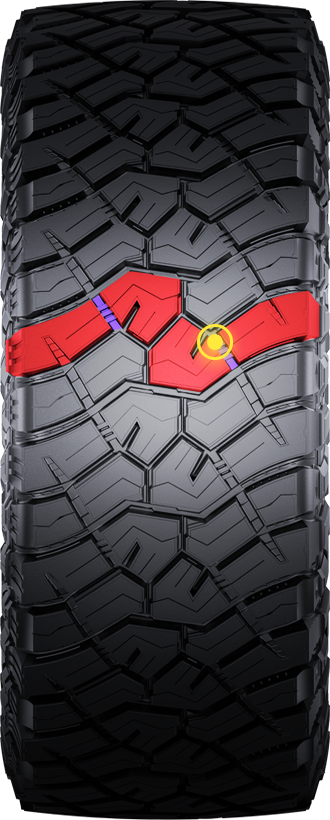

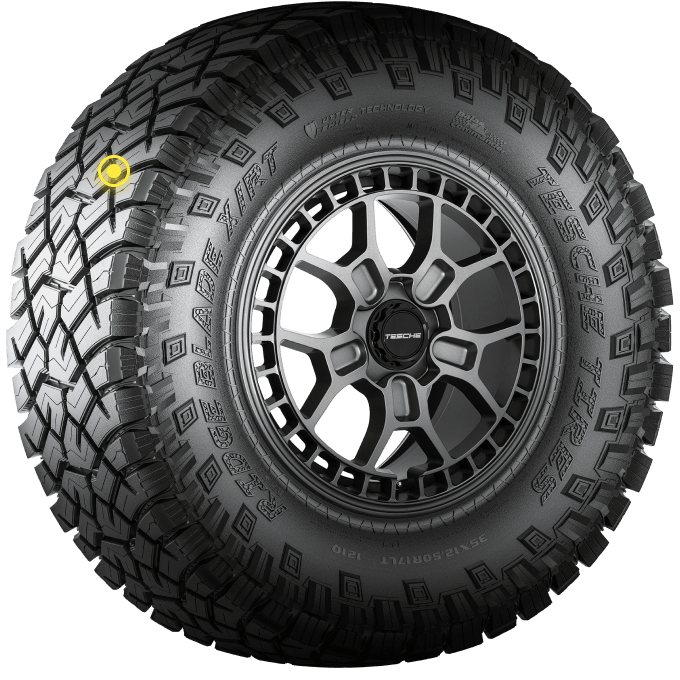

REINFORCED CONNECTION WITH THREE-DIMENSIONAL GROOVES

The bottom of the patterns are interlocked to enhance overall tear and impact resistance, thereby improving the handling stability during driving.

FEATURES & BENEFITS

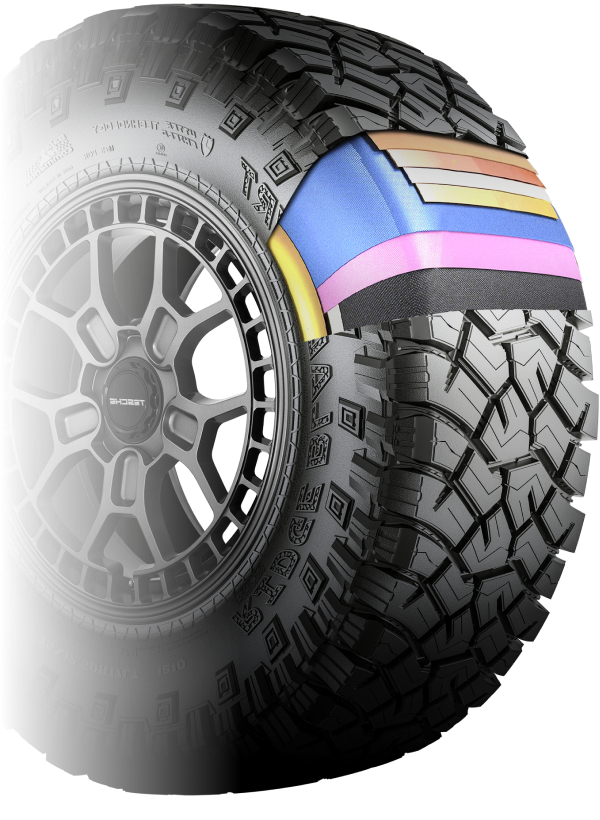

3-PLY CARCASS REINFORCEMENT STRUCTURE

The high-strength carcass material reduces puncture resistance and reduces tyre deformation, and brings excellent handling performance.

FEATURES & BENEFITS

STRONG SIDEWALL TREAD PATTERN TO RESISTS PUNCTURES

When the tire pressure is low, the sidewall pattern will become an extended pattern of the tread, effectively preventing sidewall punctures and ensuring the tire's super damage resistance under any road conditions.

FEATURES & BENEFITS

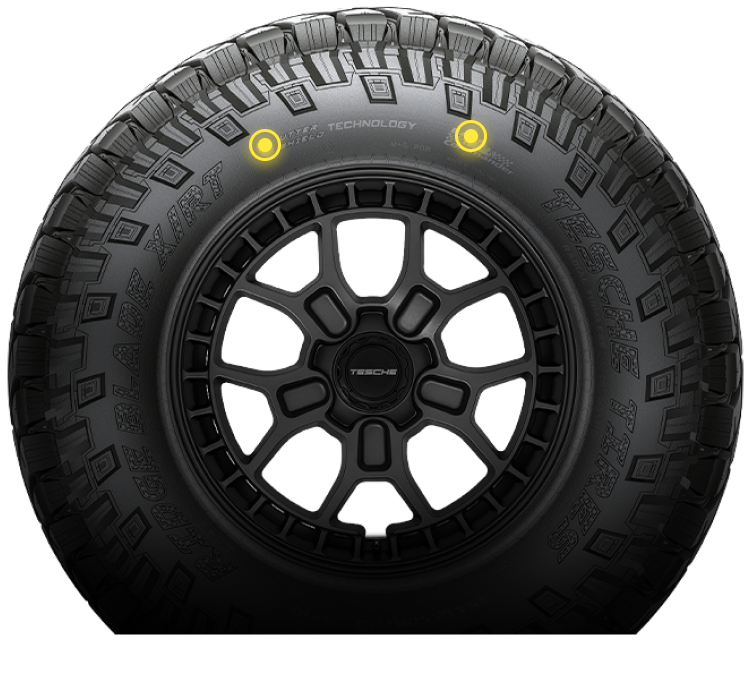

EXCLUSIVE COMPOUND AND SIDEWALL REINFORCEMENT TECHNOLOGY

The BAJA COMMANDER® formula dramatically improves durability in extreme road conditions; the reinforced sidewalls of the UTTER SHIELD® technology prevent sidewall cuts and enhance toughness.

PERFORMANCE RATINGS

MUD

4.5
ROCK

4.5
SAND

4.5
SNOW

4
WET TRACTION

4

Online Message

Name*

Tel:

Email*

content*

RELATED TIRES

RIDGE BLADE X/MT

VIEW DETAIL

RIDGE BLADE X/RT

VIEW DETAIL

RIDGE BLADE X/T

VIEW DETAIL

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC120TT	LT235/75R15	110/107	Q	D - 8P.R.	RBL-3ply	6.5	28.88	9.25	18	2337	2149	65
TC143TT	31x10.50R15LT	109	Q	D - 8P.R.	RBL-3ply	8.5	30.99	10.54	18	2271		50
TC144TT	33x10.50R15LT	114	Q	F - 12P.R.	RBL-3ply	8.5	32.99	10.54	18	2601		80
TC145TT	33x12.50R15LT	117	Q	D - 8P.R.	RBL-3ply	10.0	32.63	11.97	18	2835		50
TC095TT	35x12.50R15LT	121	Q	D - 8P.R.	RBL-3ply	10.0	34.57	11.97	18	3195		50
TC103TT	37x12.50R15LT	121	Q	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	18	3197		80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC121TT	LT245/75R16	120/116	Q	E - 10P.R.	RBL-3ply	7.0	30.47	9.65	18	3086	2756	80
TC122TT	LT265/70R16	121/118	Q	E - 10P.R.	RBL-3ply	8.5	30.61	16	18	3197	2910	80
TC123TT	LT265/75R16	121/118	Q	F - 12P.R.	RBL-3ply	7.5	31.65	10.31	18	3195	2910	95
TC084TT	LT285/75R16	121/118	Q	F - 12P.R.	RBL-3ply	8.0	32.91	11.02	18	3195	2910	95
TC124TT	LT315/75R16	127/124	K	E - 10P.R.	RBL-3ply	9.5	34.6	12	18	3858	3527	80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC125TT	LT265/65R17	120/117	Q	E - 10P.R.	RBL-3ply	9.5	30.56	10.43	18	3086	2833	80
TC126TT	LT265/70R17	121/118	Q	F - 12P.R.	RBL-3ply	8.0	31.65	10.55	18	3195	2910	95
TC085TT	LT285/70R17	121/118	Q	F - 12P.R.	RBL-3ply	8.5	32.91	11.18	18	3195	2910	95
TC127TT	LT295/70R17	121/118	Q	E - 10P.R.	RBL-3ply	8.5	33.3	11.6	18	3197	2910	80
TC128TT	LT305/65R17	121/118	Q	E - 10P.R.	RBL-3ply	9.0	32.6	12	18	3197	2910	80
TC086TT	LT315/70R17	121/118	Q	E - 10P.R.	RBL-3ply	9.5	34.36	12.4	18	3197	2910	80
TC148TT	35x11.50R17LT	126	K	F - 12P.R.	RBL-3ply	9.0	34.99	11.54	18	3748		80
TC146TT	33x12.50R17LT	121	Q	F - 12P.R.	RBL-3ply	10.0	32.63	11.97	18	3195		80
TC096TT	35x12.50R17LT	121	Q	F - 12P.R.	RBL-3ply	10.0	34.57	11.97	18	3195		80
TC104TT	37x12.50R17LT	124	K	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	18	3527		80
TC154TT	37x13.50R17LT	121	Q	F - 12P.R.	RBL-3ply	11.0	36.99	13.54	18	3197		80
TC157TT	38x13.50R17LT	126	K	F - 12P.R.	RBL-3ply	11.0	37.99	13.54	18	3748		80
TC160TT	40x13.50R17LT	126	K	F - 12P.R.	RBL-3ply	11.0	39.99	13.54	18	3748		80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC129TT	LT265/60R18	119/116	Q	E - 10P.R.	RBL-3ply	8.0	30.52	10.43	18	2998	2756	80
TC164TT	LT265/65R18	121/118	Q	F - 12P.R.	RBL-3ply	8.0	31.65	10.55	18	3195	2910	95
TC130TT	LT275/65R18	121/118	Q	F - 12P.R.	RBL-3ply	8.0	32.05	10.87	18	3195	2910	95
TC131TT	LT275/70R18	121/118	Q	F - 12P.R.	RBL-3ply	8.0	33.16	10.79	18	3195	2910	95
TC087TT	LT285/65R18	121/118	Q	F - 12P.R.	RBL-3ply	8.5	32.49	11.34	18	3195	2910	95
TC132TT	LT305/60R18	121/118	Q	E - 10P.R.	RBL-3ply	9.0	32.4	12	18	3197	2910	80
TC133TT	LT325/65R18	127/124	K	E - 10P.R.	RBL-3ply	11.0	34.6	12.8	18	3858	3527	80
TC147TT	33x12.50R18LT	121	Q	F - 12P.R.	RBL-3ply	10.0	32.63	12.13	18	3195		80
TC097TT	35x12.50R18LT	121	Q	F - 12P.R.	RBL-3ply	10.0	34.57	12.05	18	3195		80
TC105TT	37x12.50R18LT	126	K	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	18	3748		80
TC155TT	37x13.50R18LT	126	K	F - 12P.R.	RBL-3ply	11.0	36.99	13.54	18	3748		80
TC114TT	38x15.50R18LT	126	K	F - 12P.R.	RBL-3ply	12.0	37.99	15.54	18	3748		80

PART NUMBER	TIRE SIZE	L.I.	S.I.	LOAD RANGE	SIDEWALL	APPROVED RIM WIDTH (in.)	O.A. DIAMETER (in.)	O.A. WIDTH (in.)	TREAD DEPTH (32/in.)	SINGLE MAX. LOAD (lbs)	DUAL MAX. LOAD (lbs)	MAX PRESSURE (psi)
TC134TT	LT275/55R20	121/118	Q	F - 12P.R.	RBL-3ply	8.5	32.05	11.26	18	3195	2910	95
TC135TT	LT275/60R20	121/118	Q	F - 12P.R.	RBL-3ply	8.0	33.16	10.87	18	3195	2910	95
TC136TT	LT275/65R20	126	K	E - 10P.R.	RBL-3ply	8.0	34.07	10.83	18	3748		80
TC088TT	LT285/55R20	121/118	Q	F - 12P.R.	RBL-3ply	9.0	32.49	11.57	18	3195	2910	95
TC137TT	LT285/60R20	125/122	K	E - 10P.R.	RBL-3ply	8.5	33.46	11.22	18	3638	3307	80
TC138TT	LT295/55R20	123/120	K	E - 10P.R.	RBL-3ply	9.5	32.78	11.61	18	3417	3086	80
TC139TT	LT305/55R20	121/118	Q	E - 10P.R.	RBL-3ply	9.5	33.21	12.01	18	3197	2910	80
TC140TT	LT325/60R20	126	K	E - 10P.R.	RBL-3ply	11.0	37.4	12.8	18	3748		80
TC089TT	33x11.50R20LT	126	K	F - 12P.R.	RBL-3ply	9.0	32.99	11.54	18	3748		80
TC149TT	35x11.50R20LT	126	K	F - 12P.R.	RBL-3ply	9.0	34.99	11.54	18	3748		80
TC153TT	37x11.50R20LT	126	K	F - 12P.R.	RBL-3ply	9.0	36.99	11.54	18	3748		80
TC090TT	33x12.50R20LT	119	Q	F - 12P.R.	RBL-3ply	10.0	32.63	12.28	18	3000		80
TC098TT	35x12.50R20LT	121	Q	F - 12P.R.	RBL-3ply	10.0	34.57	12.28	18	3195		80
TC106TT	37x12.50R20LT	126	K	F - 12P.R.	RBL-3ply	10.0	36.99	12.54	18	3748		80
TC092TT	33x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	32.99	13.54	18	3748		80
TC101TT	35x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	34.99	13.54	18	3748		80
TC109TT	37x13.50R20LT	127/124	K	F - 12P.R.	RBL-3ply	11.0	36.99	13.54	18	3858	3527	80
TC112TT	38x13.50R20LT	126	K	F - 12P.R.	RBL-3ply	11.0	37.99	13.54	18	3748		80
TC115TT	38x15.50R20LT	126	K	F - 12P.R.	RBL-3ply	12.0	37.99	15.54	18	3748		80
TC117TT	40x15.50R20LT	126	K	F - 12P.R.	RBL-3ply	12.0	39.99	15.54	18	3748		80
